What is the Box Compression Test? Corrugated boxes in contemporary packaging and logistics, the structural quality of a box not just influences its protection levels, but also what a carton could mean for brand reputation or perhaps supply chain efficiencies.
Be it a packaging manufacturer or an FMCG and pharma brand or e-commerce fulfillment center, knowing how much compressive load your packages can withstand before they compromise is not optional — it is imperative.
That is exactly where the box compression testing machine comes in and makes a difference. We at Effective Lab India are one of the leading manufacturers and suppliers of Salt Spray Chambers, Ozone Test Chambers, UV Weathering Chamber, Packaging Testing Equipment, and designed box compression strength testers to ensure packaging performance and pass international quality tests to protect against material wastage.
This guide reviews everything you need to know about the box compression test, the types of box compression strength testers available, and their price ranges, as well as how to select the right solution for your industrial application.
Box Compression Test Methods, Price Guide for Box Compression Tester & Features of Box Compression Strength Tester
What is a Box Compression Test?
The box compression test (BCT) is an internationally standardized laboratory method of testing the maximum vertical compressive load that a given corrugated cardboard box, carton, or fibreboard container will withstand before crumpling or collapsing.
In both methods, a box sample is positioned between two flat platens on a box compression strength tester and subjected to the compressive load at a pre-determined and constant rate of loading. It records the maximum load at which a failure occurs, measured in Newtons (N) or kilogram-force (kgf), offering a numeric determination of the box’s ability to support weight.
Internationally recognized standards defining and governing the box compression test are: ASTM D642, ISO 12048, TAPPI T804, IS 7028, et al., ISTA guidelines. Such standards can define the test speed, platen sizes, specimen conditioning, and result reporting. By conforming to these standards, box compression test results are comparable and reproducible for acceptance during the course of global supply chains.
Box Compression Test Method Types
Two general types of test approaches in box compression testing are:
Static Box Compression Test: The box is subjected to an exponentially increasing load until failure occurs. It measures the box’s maximum compressive strength and is the most widely used method in packaging laboratories.
Dynamic or Cyclic Box Compression Test: the box is loaded and unloaded over several cycles to simulate multiple layers of stress from stacking/topple and stresses induced during storage/transit. This approach is most pertinent for export packaging, enduring long-term warehousing.

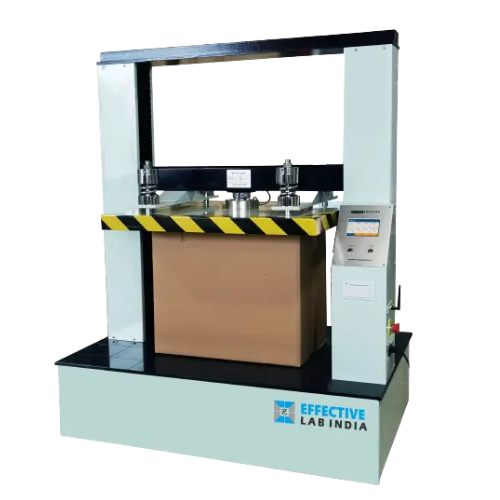

Main Features of the Box Compression Strength Tester
- The Box Compression Strength Tester from Effective Lab India comes with the following technical specifications:
- Load cell capacity: 500 kgf to 5000 kgf (based on application selectable)
- Platen Size: 600 mm x 600 mm (standard), as well as custom sizes for larger boxes
- Test Speed: 10±30 mm/min (Can be adjusted, acc to respective ASTM D642 and ISO 12048)
- DISPLAY & CONTROL: Digital input interface with built-in HMI, and load-displacement graph
- Output Data: Peak load, deformation at failure, load-displacement curve — Export with USB / RS232 / LAN
- Input: input accuracy to ± 1 % of fo cl reading
- Construction: Reinforced welded steel frame, with anti-vibration base
- Standards: ASTM D642, ISO 12048, TAPPI T804, IS 7028, and ISTA.
Box Compression Tester Price Guide
Box Compression Tester Price in India & Their Realistic Use: Box compression tester price in India varies from one manufacturer to another based on the load cell capacity as well as platen size, control system sophistication, and legal compliance requirements. For small packaging labs, entry-level manual or semi-automatic box compression testers cost between INR 80,000 and INR 1,50,000, depending on the brand, as a rough market benchmark.
The price range for mid-range fully Automatic digital Box compression strength testers with HMI touchscreen, data logging software is typically between INR 1,50,000 and INR 3,50,000. Large corrugated box testing, export carton validation, and heavy-duty box compression test requirements have higher capacities as well as heavier specifications and are typically priced around INR 3,50,000 to INR 6,00,000 or more based on spec.
Effective Lab India provides you with a box compression tester price for the entire capacity segment at higher competitive prices. With no-compromise build quality and backed by after-sales support, Cykel’s transparent pricing policy promises a go-to-market value of your investment. We also offer personalized quotes for OEM buyers, research organizations, and bulk purchase needs.
Suggested Post:
What is the Box Compression Tester (BCT) test procedure?
Industrial BOD Incubator Diagram: Specifications & Supplier Insights
Box Compression Test: Simple Solutions to Box Compression Tester Price & Box Compression Strength Test
When talking about industry today, the Box Compression Test is one of the major and essential criteria to consider.
In stacked warehouse storage, the boxes at the bottom of a column of pallets support all boxes above them. When the corrugated box compression strength is not sufficient, the lower boxes get crushed, which leads to damage to the product inside, risk to safety, and most importantly, expensive product returns.
The box compression test measures the exact amount of stacking load your packaging can handle, so engineers can develop packages that minimize material cost but maintain sufficient structural performance.
For e-commerce companies, that survive the battering of automated sorting, conveyor, and last-mile delivery is a direct competitive edge. Of course, an incomplete package is a must for pharmaceutical manufacturers from the perspective of regulatory bodies. Failed executions in packaging at retail mean lost sales and broken consumer trust for FMCG brands. The box compression test is a frontline QC tool that directly saves business outcomes in all sectors.
Applications of Box Compression Strength Testing in Industry
- Corrugated Box manufacturers: Validating the BCT value of finished boxes against customer specifications and international standards before dispatching.
- FMCG & Food – Make sure your retail-ready packaging does not get crushed when stacked in warehouse and cold-chain conditions.
- Pharmaceutical Packaging: Using overprinting to validate the integrity of secondary and tertiary packaging for regulatory compliance and safe transport.
- E-Commerce & Logistics: Assessing the integrity of shipping boxes in the loading dock, courier doorsteps, and the last-mile process.
- Export Packaging: Confirming export cartons are in compliance with ISTA, ASTM, or box compression strength specifications required by the customer.
- Paper and board mills: ensure the quality of raw corrugated board pre-conversion into finished packaging.
The box compression strength testers from Effective Lab India measure much more than just the basic load. Our instrumentation has advanced software which can create full load-displacement curves, compute absorption energy at failure, and be statistically analyzed multi-sample-wise— a must for R&D laboratories and packaging development teams.
With an intuitive PLC-based HMI interface, multiple test programs can be stored, and historical results recalled easily, as well as generating professional test reports at the click of a button. Where network connectivity is a must, our testers can communicate with LIMS (Laboratory Information Management Systems) via LAN.
Choosing the Right Box Compression Strength Tester for Your Application
Choosing the right box compression strength tester is a matter of your precise testing needs. Load capacity — you need a machine whose top load range goes well over the anticipated compression strength of your heaviest box sample.
An ideal test would be a 200 kgf box on a 500 kgf machine; however, you could be surprised to know that if the test were performed on a 150 kgf machine, not only is it unsafe, but also unreliable.
The second consideration is, of course, the platen size. Your box compression strength tester platens should be wide enough to adequately support the bottom and top faces of the largest box you wish to test.
Our standard testing platens are made in a commercially available-sized 600 mm x 600 mm and, using our custom design expertise, can be sized larger for industry packages of oversized export master cartons or heavy-duty transit cases.
Third, think about how much automated data management you require. A fully automated box compression tester incorporated with preset test programs and one-button operation for the quality control of production, where high throughput is critical. Test speed is of little importance for applications in R&D and packaging development; however, graphical output, curve analysis capabilities, and report generation are essential for sophisticated software.
Why BEST LAB COMPRESSIVE BOX TESTER MANUFACTURER in India, so you select Effective Lab India
Effective Lab India is a multi-category precision instrument manufacturer with niche-level expertise in environmental testing (Salt Spray Chambers, Ozone Test Chambers, UV Weathering Chambers & Climatic Chambers) and physical testing equipment, including Box Compression Testers, Bursting Strength Testers, Edge Crush Testers & Tensile Testing Machines.
The depth of manufacturing expertise allows our box compression strength testers to be designed with the same precision, compliance rigor, and built quality that has been trusted for years by our environmental chamber customers.
Due to the compromising point of accuracy, repeatability, and safety elements involved with Box Compression Tester price points, we ensure our testing equipment is naturally competitive yet highly desirable at a 2021 operating profile level.
We have a full line-up from budget digital box compression testers for packaging material suppliers and small quality labs, to high-capacity heavy-duty test machines for large corrugated box makers and export packaging firms. All equipment comes with onsite support, operator training, annual maintenance contracts, and availability of spare parts anywhere in India.
Buying a box compression strength tester from Effective Lab India isn’t just about having a top-notch measuring instrument in your laboratory, but gaining a durable quality assurance companion that knows all the ins and outs of your industry — your standards and goals. For a comprehensive product specification, box compression tester price quote, or to arrange a live product demonstration in your premises, speak to our technical sales team today.
Frequently Asked Questions (FAQs)
Q1. What is a box compression test, and how does it work?
A box compression test (BCT) is a quality control package testing procedure that determines how much compressive load a corrugated box, carton, or fibreboard container can withstand until it fails structurally or becomes deformed.
The box sample is compressed between two flat platens at a standardized sliding speed, and it is performed on a box compression strength tester. This leads to a result outputted in Newtons (N) or kilogram-force (kgf), which explains precisely the weight stacking ability of the box under warehousing and shipping scenarios to manufacturers, packagers, and logistics companies.
Q2. What are the standards for box compression tests for corrugated boxes?
Some of the most commonly utilized standards for this type of box compression testing are: ASTM D642 (Standard Test Method for Determining Compressive Resistance of Shipping Containers)ISO 12048 (Packaging — Complete, filled transport packages — Compression and stacking tests), TAPPI T804 (Compression test of fiberboard shipping containers), IS 7028(Indian Standard for corrugated fibreboard boxes)ISTA protocol for transit test.
The box compression strength testers by Effective Lab India are entirely well-fitted with the mentioned international standards to ensure the complete performance of the machine.
Q3. What’s the typical box compression tester price range in India?.
The price of a box compression tester in India is based on load capacity, size of platens, control system, and level of compliance features.
For general reference, semi-automatics or entry-level digitals start at around INR 80.000 toINR 1.50,000/-
The price for a fully automatic box compression strength tester with HMI touch screen data logging software is generally in the range of INR 1,50,000-3,50,000.
Models for industrial and export packaging labs with higher capacities (heavy-duty) are available between INR 3,50,000 to INR 6,00,000 & above. All the ranges are priced at very competitive and transparent pricing due to Effective Lab India. Get in touch with our team for a flexible quotation based on your needs.
